QUOTE (eaolson @ Dec 12 2008, 10:29 PM)

None of those are booleans. It's not quite clear what you're doing here.

You can pass out all of the values from inside a loop by right-clicking on the tunnel, and selecting "Enable indexing." Then you'll have all the values and can do whatever you want with them.

I am sorry,My mistake!I meant binary.

What i want to do is to make a loop that gives me one value each time during the loop.

Then I can take each value,compare with another value and make my graph.

It is something like the VI that user Maca sent me before some days..

The difference with that i am trying to make is that the loop could create the switches state automatically.

Instead of changing the switches one by one i can send a number(like a code).For example i send the number 16 instead of changing the 5 switches with the word '10000'.

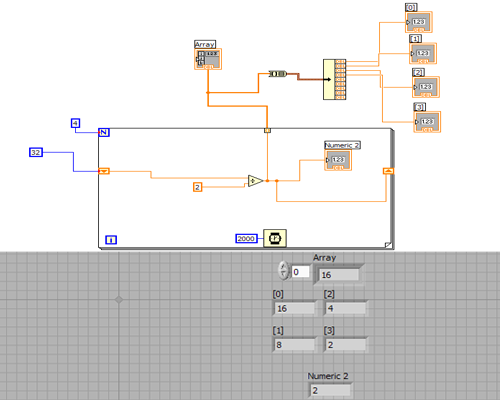

You can check what i have done in the following image.But the problem is that this loop gives me 4 values when loop terminates.

I want to take one after another during the loop is running.

http://lavag.org/old_files/monthly_12_2008/post-14123-1229120375.png' target="_blank">

Thank you,

lal

Hi again,

As i said on my last post i would like the states changes automatically.I convert the boolean states to integer.

My states are 10000, 1000, 100, 10...So my values are 16, 8, 4, 2.

Then I create a For loop using shft registers.

The problem is that i can't transfer the different values out of the structure.

As i know data pass out of the loop only when the loop terminates.That's why i get the last value on an external indicator.

Can i do something with that or i have to think another way?

Thank you

QUOTE (Maca @ Dec 8 2008, 01:01 PM)

Lal it really doesn't seem like your trying, but attached is a VI which should get you started.

Thank you Maca for your help.

This is a very good start for me.This VI will help me to understand how these controls work.

I will play with these controls and I think that I can create the graph I want.

I am looking for a way that states change automatically, not manual like in your VI.But I don't want the solution...I will try to find it on my own!!

Thank you,

lal

QUOTE (Justin Goeres @ Dec 8 2008, 01:39 AM)

Are you doing this with hardware, or is it just a programming exercise? The solution will be very different depending on whether you're operating any "real" hardware or whether you're just doing a demonstration that displays things to a front panel window.

Also, have you looked through the intro materials in the LabVIEW Help? They're probably the best introduction to the basic tools available to you.

I am doing just a demonstration that displays things to the front panel.

Just the graph according to the switches state..

I already have looked in the labview help and at some e-books that i have.But as you know there are so many tools in the labview that i have been lost!

Thank you,

lal

QUOTE (Justin Goeres @ Dec 7 2008, 07:42 PM)

What have you come up with so far? If you show us what you've got, we can definitely help you figure out what's wrong with it.

I haven't done anything that works because I don't know which tools are the appropriate for my work.I have tried to use the simulate signal but I can't do anything with that.I suppose that I need some boolean controls (in order to change the switches state) and something that I can save all the states.This must be an array. Then I suppose that i need a delay.Finally i must use a while structure in order to see the alteration of switches state.

I didn't post this topic because I wanted to give me the solution.

I just need some guidance.

Thank you,

lal

Hi,

I am not using the labview for a long time,that's why i have a question.I have already searched at google and at some of my books but i haven't found the solution in my problem.I am trying to create a graph showing the fluctuation of voltage depends on 3 switches.

To be more specific check the signal i want to create...

Thank you,

lal
