Main Window
© Petrobras - Petroleo Brasileiro SA

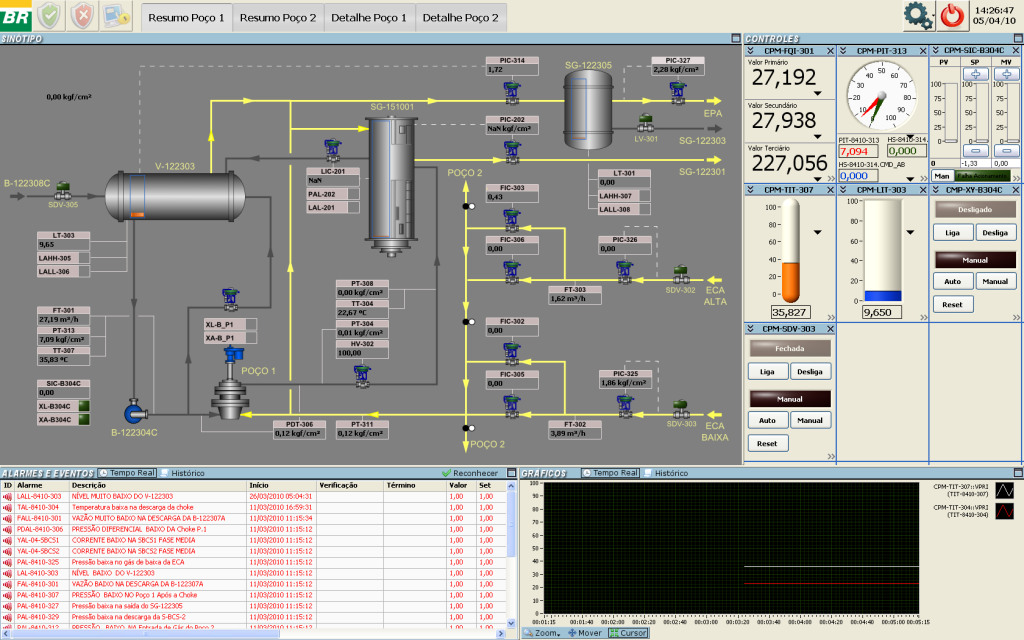

Supervisory System main window. The main window consists of one subpanel window that shows 1 of 8 layouts vis. The layout vis divides the main area in on, two, three or four subareas.

These subareas can filled with the panels of sinoptic, groups, alarms and graphics. This interface is totally reconfigurable. One application for many plants and every plant represents one line on the database. This system has own supervisory editor and dont need develop new code to include other plants to the system.
